ExtractConfiguration

The ExtractConfiguration job template extracts Python project settings from pyproject.toml and shares the values via output parameters with other jobs. Thus, only a single centralized implementation is needed to avoid code duplications within jobs.

Features

• Extract the unittest report file in pytest’s JUnit XML format as directory name, filename and full path from pyproject.toml.

• Extract the merged unittest XML report file as directory name, filename and full path from pyproject.toml.

• Extract code coverage report in HTML format as directory from pyproject.toml.

• Extract code coverage report file in Cobertura XML format as directory name, filename and full path from pyproject.toml.

• Extract code coverage report file in Coverage.py’s JSON format as directory name, filename and full path from pyproject.toml.

• Extract static typing report file in Cobertura XML format as directory name, filename and full path from pyproject.toml.

• Extract static typing report file in JUnit XML format as directory name, filename and full path from pyproject.toml.

• Extract static typing report in HTML format as directory name from pyproject.toml.

Behavior

1. Checkout repository.

2. Install Python dependencies.

3. Compute the full package name and the package source directory.

4. Read pyproject.toml and extract settings for:

   • Coverage.py

   • mypy

   • pyEDAA.Reports

   • pytest

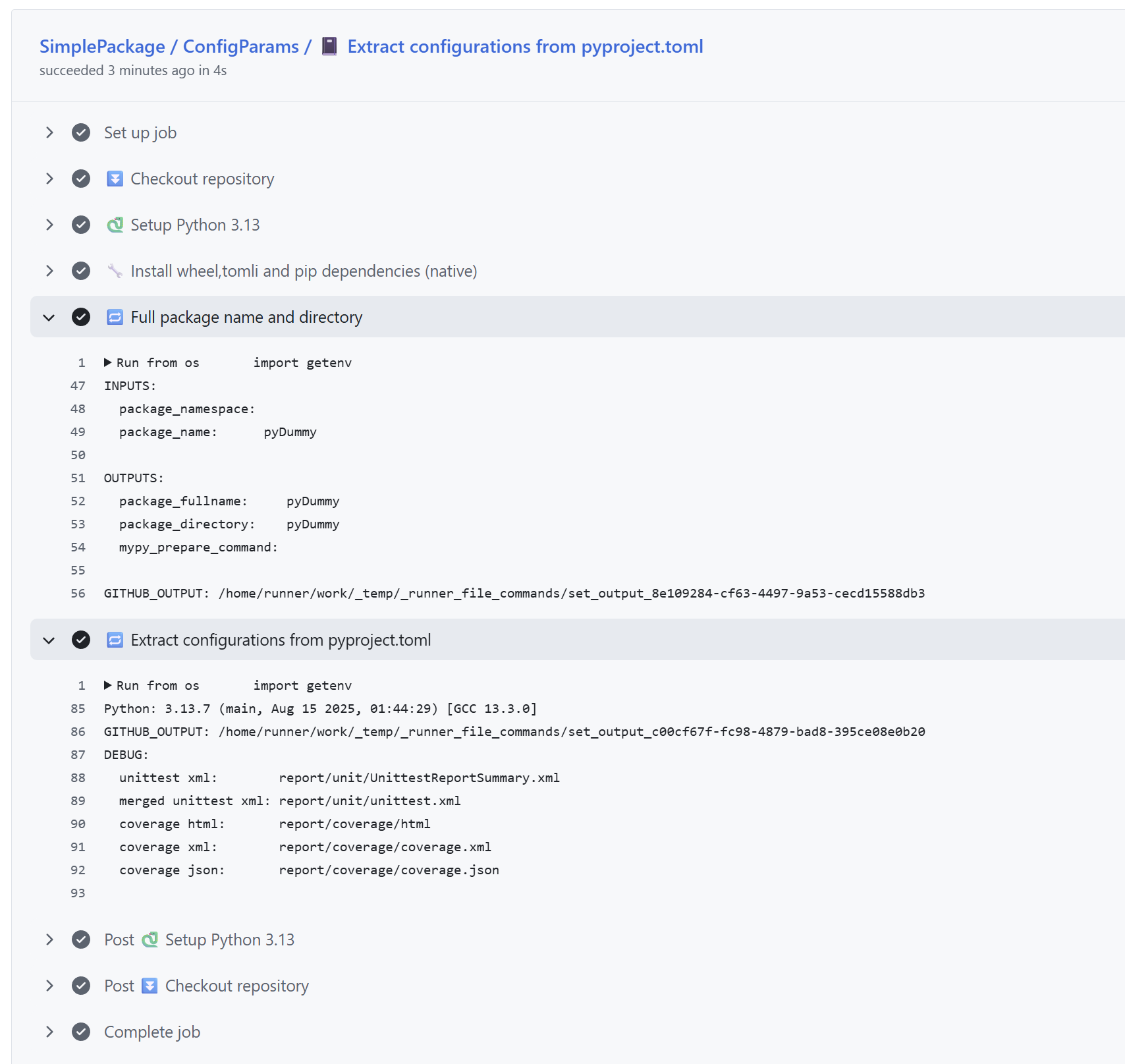

Job Execution

Dependencies

• GitHub: actions/checkout

• GitHub: actions/setup-python

  • PyPI: wheel

  • PyPI: tomli

Instantiation

The following instantiation example creates a ConfigParams job derived from job template ExtractConfiguration version @r6. It requires no special parameters to extract unit test (pytest) and code coverage (Coverage.py) settings.

jobs:
  ConfigParams:
    uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

  UnitTesting:
    uses: pyTooling/Actions/.github/workflows/UnitTesting.yml@r6
    needs:
      - ConfigParams
    with:
      unittest_report_xml:  ${{ needs.ConfigParams.outputs.unittest_report_xml }}
      coverage_report_xml:  ${{ needs.ConfigParams.outputs.coverage_report_xml }}
      coverage_report_json: ${{ needs.ConfigParams.outputs.coverage_report_json }}
      coverage_report_html: ${{ needs.ConfigParams.outputs.coverage_report_html }}

See also

UnitTesting

UnitTesting is usually

StaticTypeCheck

xxx

CheckDocumentation

xxx

InstallPackage (beta)

xxx

PublishCoverageResults

xxx

PublishTestResults

xxx

SphinxDocumentation

xxx

Parameter Summary

Goto input parameters

Parameter Name	Required	Type	Default
ubuntu_image_version	no	string	'24.04'
python_version	no	string	'3.13'
coverage_config	no	string	'pyproject.toml'

Goto secrets

This job template needs no secrets.

Goto output parameters

Result Name	Type	Description
unittest_report_xml	string (JSON)
unittest_merged_report_xml	string (JSON)
coverage_report_html	string (JSON)
coverage_report_xml	string (JSON)
coverage_report_json	string (JSON)
typing_report_cobertura	string (JSON)
typing_report_junit	string (JSON)
typing_report_html	string (JSON)

Input Parameters

ubuntu_image_version

Type:

string

Required:

no

Default Value:

'24.04'

Possible Values:

See actions/runner-images - Available Images for available Ubuntu image versions.

Description:

Version of the Ubuntu image used to run the job.

Note

Unfortunately, GitHub Actions has only a limited set of functions, thus, the usual Ubuntu image name like 'ubuntu-24.04' can’t be split into image name and image version.

python_version

Type:

string

Required:

no

Default Value:

'3.13'

Possible Values:

Any valid Python version conforming to the pattern <major>.<minor> or pypy-<major>.<minor>.
See actions/python-versions - available Python versions and actions/setup-python - configurable Python versions.

Description:

Python version used to run Python code in the job.

coverage_config

Type:

string

Required:

no

Default Value:

'pyproject.toml'

Possible Values:

Any valid path to a pyproject.toml file.
Alternatively, path to a .coveragerc file (deprecated).

Description:

Path to a Python project configuration file for extraction of project settings.

Example:

Extracted values from pyproject.toml

[tool.coverage.xml]
output = "report/coverage/coverage.xml"

[tool.coverage.json]
output = "report/coverage/coverage.json"

[tool.coverage.html]
directory = "report/coverage/html"
title="Code Coverage of myPackage"

[tool.mypy]
html_report = "report/typing/html"
junit_xml = "report/typing/StaticTypingSummary.xml"
cobertura_xml_report = "report/typing"

[tool.pyedaa-reports]
junit_xml = "report/unit/unittest.xml"

[tool.pytest]
junit_xml = "report/unit/UnittestReportSummary.xml"

Secrets

This job template needs no secrets.

Outputs

unittest_report_xml

Type:

string (JSON)

Description:

Returns a string in JSON format containing the directory, the filename and the fullpath to the unit test’s report XML file created by pytest in JUnit XML format.

The JSON object contains these fields:

directory:

Contains the directory where the unittest XML report file will be created.
Example: reports/unit

filename:

Contains the filename of the unittest XML report file.
Example: UnittestReportSummary.xml

fullpath:

Contains the path where the unittest XML report file will be created.
This is the concatenation of both previous JSON fields.
Example: reports/unit/UnittestReportSummary.xml

pyproject.toml:

Matching pyproject.toml configuration for tool pytest.

[tool.pytest]
junit_xml = "report/unit/UnittestReportSummary.xml"

Example:

{ "directory": "reports/unit",
  "filename":  "UnittestReportSummary.xml",
  "fullpath":  "reports/unit/UnittestReportSummary.xml"
}

Usage:

Forwarding complete JSON object

ConfigParams:
  uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

OtherJob:
  uses: some/path/to/a/template@r6
  needs:
    - ConfigParams
  with:
    report: ${{ needs.ConfigParams.outputs.unittest_report_xml }}

Assembling new JSON object

ConfigParams:
  uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

OtherJob:
  uses: some/path/to/a/template@r6
  needs:
    - ConfigParams
  with:
    report: >-
      { "dir":  "${{ fromJson(needs.ConfigParams.outputs.unittest_report_xml).directory }}",
        "file": "${{ fromJson(needs.ConfigParams.outputs.unittest_report_xml).filename }}"
      }

Using single field from JSON object

ConfigParams:
  uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

OtherJob:
  uses: some/path/to/a/template@r6
  needs:
    - ConfigParams
  with:
    fullpath: ${{ fromJson(needs.ConfigParams.outputs.unittest_report_xml).fullpath }}

unittest_merged_report_xml

Type:

string (JSON)

Description:

Returns a string in JSON format containing the directory, the filename and the fullpath to the merged unittest report file in JUnit XML format created by pyEDAA.Reports.

The JSON object contains these fields:

directory:

Contains the directory where the merged unittest XML report file will be created.
Example: reports/unit

filename:

Contains the filename of the merged unittest XML report file.
Example: unittest.xml

fullpath:

Contains the path where the merged unittest XML report file will be created.
This is the concatenation of both previous JSON fields.
Example: reports/unit/unittest.xml

pyproject.toml:

Matching pyproject.toml configuration for tool pyEDAA.Reports.

[tool.pyedaa-reports]
junit_xml = "report/unit/unittest.xml"

Example:

{ "directory": "reports/unit",
  "filename":  "unittest.xml",
  "fullpath":  "reports/unit/unittest.xml"
}

Usage:

Forwarding complete JSON object

ConfigParams:
  uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

OtherJob:
  uses: some/path/to/a/template@r6
  needs:
    - ConfigParams
  with:
    report: ${{ needs.ConfigParams.outputs.unittest_merged_report_xml }}

Assembling new JSON object

ConfigParams:
  uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

OtherJob:
  uses: some/path/to/a/template@r6
  needs:
    - ConfigParams
  with:
    report: >-
      { "dir":  "${{ fromJson(needs.ConfigParams.outputs.unittest_merged_report_xml).directory }}",
        "file": "${{ fromJson(needs.ConfigParams.outputs.unittest_merged_report_xml).filename }}"
      }

Using single field from JSON object

ConfigParams:
  uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

OtherJob:
  uses: some/path/to/a/template@r6
  needs:
    - ConfigParams
  with:
    fullpath: ${{ fromJson(needs.ConfigParams.outputs.unittest_merged_report_xml).fullpath }}

coverage_report_html

Type:

string (JSON)

Description:

Returns a string in JSON format containing the directory and the full path, where the code coverage HTML report will be generated by Coverage.py.

The JSON object contains these fields:

directory:

Contains the directory where the code coverage report in HTML format will be created.
Example: report/coverage/html

fullpath:

Contains the path where the code coverage report in HTML format will be created.
This is the same as the previous JSON field.
Example: report/coverage/html

pyproject.toml:

Matching pyproject.toml configuration for tool Coverage.py.

[tool.coverage.html]
directory = "report/coverage/html"
title="Code Coverage of pyDummy"

Example:

{ "directory": "report/coverage/html",
  "fullpath":  "report/coverage/html"
}

Usage:

Forwarding complete JSON object

ConfigParams:
  uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

OtherJob:
  uses: some/path/to/a/template@r6
  needs:
    - ConfigParams
  with:
    report: ${{ needs.ConfigParams.outputs.coverage_report_html }}

Assembling new JSON object

ConfigParams:
  uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

OtherJob:
  uses: some/path/to/a/template@r6
  needs:
    - ConfigParams
  with:
    report: >-
      { "dir":  "${{ fromJson(needs.ConfigParams.outputs.coverage_report_html).directory }}",
        "file": "${{ fromJson(needs.ConfigParams.outputs.coverage_report_html).filename }}"
      }

Using single field from JSON object

ConfigParams:
  uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

OtherJob:
  uses: some/path/to/a/template@r6
  needs:
    - ConfigParams
  with:
    fullpath: ${{ fromJson(needs.ConfigParams.outputs.coverage_report_html).fullpath }}

coverage_report_xml

Type:

string (JSON)

Description:

Returns a string in JSON format containing the directory, the filename and the fullpath to the code coverage XML report file in Cobertura XML format created by Coverage.py.

The JSON object contains these fields:

directory:

Contains the directory where the code coverage XML report file will be created.
Example: reports/unit

filename:

Contains the filename of the code coverage XML report file.
Example: unittest.xml

fullpath:

Contains the path where the code coverage XML report file will be created.
This is the concatenation of both previous JSON fields.
Example: reports/unit/unittest.xml

pyproject.toml:

Matching pyproject.toml configuration for tool Coverage.py.

[tool.coverage.xml]
output = "report/coverage/coverage.xml"

Example:

{ "directory": "reports/coverage",
  "filename":  "coverage.xml",
  "fullpath":  "reports/coverage/coverage.xml"
}

Usage:

Forwarding complete JSON object

ConfigParams:
  uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

OtherJob:
  uses: some/path/to/a/template@r6
  needs:
    - ConfigParams
  with:
    report: ${{ needs.ConfigParams.outputs.coverage_report_xml }}

Assembling new JSON object

ConfigParams:
  uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

OtherJob:
  uses: some/path/to/a/template@r6
  needs:
    - ConfigParams
  with:
    report: >-
      { "dir":  "${{ fromJson(needs.ConfigParams.outputs.coverage_report_xml).directory }}",
        "file": "${{ fromJson(needs.ConfigParams.outputs.coverage_report_xml).filename }}"
      }

Using single field from JSON object

ConfigParams:
  uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

OtherJob:
  uses: some/path/to/a/template@r6
  needs:
    - ConfigParams
  with:
    fullpath: ${{ fromJson(needs.ConfigParams.outputs.coverage_report_xml).fullpath }}

coverage_report_json

Type:

string (JSON)

Description:

Returns a string in JSON format containing the directory, the filename and the fullpath to the code coverage JSON report file created by Coverage.py.

The JSON object contains these fields:

directory:

Contains the directory where the code coverage JSON report file will be created.
Example: reports/unit

filename:

Contains the filename of the code coverage JSON report file.
Example: unittest.json

fullpath:

Contains the path where the code coverage JSON report file will be created.
This is the concatenation of both previous JSON fields.
Example: reports/unit/unittest.json

pyproject.toml:

Matching pyproject.toml configuration for tool Coverage.py.

[tool.coverage.json]
output = "report/coverage/coverage.json"

Example:

{ "directory": "reports/coverage",
  "filename":  "coverage.json",
  "fullpath":  "reports/coverage/coverage.json"
}

Usage:

Forwarding complete JSON object

ConfigParams:
  uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

OtherJob:
  uses: some/path/to/a/template@r6
  needs:
    - ConfigParams
  with:
    report: ${{ needs.ConfigParams.outputs.coverage_report_json }}

Assembling new JSON object

ConfigParams:
  uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

OtherJob:
  uses: some/path/to/a/template@r6
  needs:
    - ConfigParams
  with:
    report: >-
      { "dir":  "${{ fromJson(needs.ConfigParams.outputs.coverage_report_json).directory }}",
        "file": "${{ fromJson(needs.ConfigParams.outputs.coverage_report_json).filename }}"
      }

Using single field from JSON object

ConfigParams:
  uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

OtherJob:
  uses: some/path/to/a/template@r6
  needs:
    - ConfigParams
  with:
    fullpath: ${{ fromJson(needs.ConfigParams.outputs.coverage_report_json).fullpath }}

typing_report_cobertura

Type:

string (JSON)

Description:

Returns a string in JSON format containing the directory, the filename and the fullpath to the static type checking report file in Cobertura format created by mypy.

The JSON object contains these fields:

directory:

Contains the directory where the type checking XML report file will be created.
Example: reports/typing

filename:

Contains the filename of the type checking XML report file.
Example: cobertura.xml

fullpath:

Contains the path where the type checking XML report file will be created.
This is the concatenation of both previous JSON fields.
Example: reports/typing/cobertura.xml

pyproject.toml:

Matching pyproject.toml configuration for tool mypy.

[tool.mypy]
cobertura_xml_report = "report/typing"

Example:

{ "directory": "reports/typing",
  "filename":  "cobertura.xml",
  "fullpath":  "reports/typing/cobertura.xml"
}

Usage:

Forwarding complete JSON object

ConfigParams:
  uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

OtherJob:
  uses: some/path/to/a/template@r6
  needs:
    - ConfigParams
  with:
    report: ${{ needs.ConfigParams.outputs.typing_report_cobertura }}

Assembling new JSON object

ConfigParams:
  uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

OtherJob:
  uses: some/path/to/a/template@r6
  needs:
    - ConfigParams
  with:
    report: >-
      { "dir":  "${{ fromJson(needs.ConfigParams.outputs.typing_report_cobertura).directory }}",
        "file": "${{ fromJson(needs.ConfigParams.outputs.typing_report_cobertura).filename }}"
      }

Using single field from JSON object

ConfigParams:
  uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

OtherJob:
  uses: some/path/to/a/template@r6
  needs:
    - ConfigParams
  with:
    fullpath: ${{ fromJson(needs.ConfigParams.outputs.typing_report_cobertura).fullpath }}

typing_report_junit

Type:

string (JSON)

Description:

Returns a string in JSON format containing the directory, the filename and the fullpath to the static type checking report file in JUnit XML format created by mypy.

The JSON object contains these fields:

directory:

Contains the directory where the static typing JUnit XML report file will be created.
Example: reports/typing

filename:

Contains the filename of the static typing JUnit XML report file.
Example: StaticTypingSummary.xml

fullpath:

Contains the path where the cstatic typing JUnit XML report file will be created.
This is the concatenation of both previous JSON fields.
Example: reports/typing/StaticTypingSummary.xml

pyproject.toml:

Matching pyproject.toml configuration for tool mypy.

[tool.mypy]
junit_xml = "report/typing/StaticTypingSummary.xml"

Example:

{ "directory": "reports/typing",
  "filename":  "StaticTypingSummary.xml",
  "fullpath":  "reports/typing/StaticTypingSummary.xml"
}

Usage:

Forwarding complete JSON object

ConfigParams:
  uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

OtherJob:
  uses: some/path/to/a/template@r6
  needs:
    - ConfigParams
  with:
    report: ${{ needs.ConfigParams.outputs.typing_report_junit }}

Assembling new JSON object

ConfigParams:
  uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

OtherJob:
  uses: some/path/to/a/template@r6
  needs:
    - ConfigParams
  with:
    report: >-
      { "dir":  "${{ fromJson(needs.ConfigParams.outputs.typing_report_junit).directory }}",
        "file": "${{ fromJson(needs.ConfigParams.outputs.typing_report_junit).filename }}"
      }

Using single field from JSON object

ConfigParams:
  uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

OtherJob:
  uses: some/path/to/a/template@r6
  needs:
    - ConfigParams
  with:
    fullpath: ${{ fromJson(needs.ConfigParams.outputs.typing_report_junit).fullpath }}

typing_report_html

Type:

string (JSON)

Description:

Returns a string in JSON format containing the directory, the filename and the fullpath to the static type checking report in HTML format created by mypy.

The JSON object contains these fields:

directory:

Contains the directory where the static typing HTML report will be created.
Example: reports/typing/html

fullpath:

Contains the path where the static typing HTML report will be created.
This is the same as the previous JSON field.
Example: reports/typing/html

pyproject.toml:

Matching pyproject.toml configuration for tool mypy.

[tool.mypy]
html_report = "report/typing/html"

Example:

{ "directory": "reports/typing/html",
  "fullpath":  "reports/typing/html"
}

Usage:

Forwarding complete JSON object

ConfigParams:
  uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

OtherJob:
  uses: some/path/to/a/template@r6
  needs:
    - ConfigParams
  with:
    report: ${{ needs.ConfigParams.outputs.typing_report_html }}

Assembling new JSON object

ConfigParams:
  uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

OtherJob:
  uses: some/path/to/a/template@r6
  needs:
    - ConfigParams
  with:
    report: >-
      { "dir":  "${{ fromJson(needs.ConfigParams.outputs.typing_report_html).directory }}",
        "file": "${{ fromJson(needs.ConfigParams.outputs.typing_report_html).filename }}"
      }

Using single field from JSON object

ConfigParams:
  uses: pyTooling/Actions/.github/workflows/ExtractConfiguration.yml@r6

OtherJob:
  uses: some/path/to/a/template@r6
  needs:
    - ConfigParams
  with:
    fullpath: ${{ fromJson(needs.ConfigParams.outputs.typing_report_html).fullpath }}

Optimizations

This template offers no optimizations (reduced job runtime).
