Parameters

The Parameters job template is a workaround for the limitations of GitHub Actions to handle global variables in GitHub Actions workflows (see actions/runner#480).

It generates output parameters with artifact names and a job matrix to be used in later running jobs.

Instantiation

Simple Example

The following instantiation example creates a Params job derived from job template Parameters version @r5. It only requires a package_name parameter to create the artifact names.

name: Pipeline

on:
  push:
  workflow_dispatch:

jobs:
  Params:
    uses: pyTooling/Actions/.github/workflows/Parameters.yml@r5
    with:
      package_name: myPackage

  UnitTesting:
    uses: pyTooling/Actions/.github/workflows/UnitTesting.yml@r5
    needs:
      - Params
    with:
      jobs: ${{ needs.Params.outputs.python_jobs }}

Complex Example

The following instantiation example creates 3 jobs from the same template, but with differing input parameters.

The first UnitTestingParams job might be used to create a job matrix of unit tests. It creates the cross of default systems (Windows, Ubuntu, macOS, macOS-ARM, MinGW64, UCRT64) and the given list of Python versions including some mypy versions. In addition a list of excludes (marked as deletions) and includes (marked as additions) is handed over resulting in the following combinations.

The second PerformanceTestingParams job might be used to create a job matrix for performance tests. Here a pipeline might be limited to the latest two Python versions on a selected list of platforms.

The third PlatformTestingParams job might be used to create a job matrix for platform compatibility tests. Here a pipeline might be limited to the latest Python version, but all available platforms.

jobs:
  UnitTestingParams:
    uses: pyTooling/Actions/.github/workflows/Parameters.yml@r5
    with:
      package_namespace:   myFramework
      package_name:        Extension
      python_version_list: '3.9 3.10 3.11 3.12 pypy-3.10 pypy-3.11'
      system_list:         'ubuntu windows macos macos-arm mingw64 ucrt64'
      include_list:        'ubuntu:3.13 macos:3.13 macos-arm:3.13'
      exclude_list:        'windows:pypy-3.10 windows:pypy-3.11'

  PerformanceTestingParams:
    uses: pyTooling/Actions/.github/workflows/Parameters.yml@r5
    with:
      package_namespace:   myFramework
      package_name:        Extension
      python_version_list: '3.12 3.13'
      system_list:         'ubuntu windows macos macos-arm'

  PlatformTestingParams:
    uses: pyTooling/Actions/.github/workflows/Parameters.yml@r5
    with:
      package_namespace:   myFramework
      package_name:        Extension
      python_version_list: '3.13'
      system_list:         'ubuntu windows macos macos-arm mingw32 mingw64 clang64 ucrt64'

Version	3.9 🔴	3.10 🟠	3.11 🟡	3.12 🟢	3.13 🟢	pypy-3.10 🟠	pypy-3.11 🟡
Ubuntu 🐧	ubuntu:3.9	ubuntu:3.10	ubuntu:3.11	ubuntu:3.12	ubuntu:3.13	ubuntu:pypy-3.10	ubuntu:pypy-3.11
macOS (x86-64) 🍎	macos:3.9	macos:3.10	macos:3.11	macos:3.12	macos:3.13	macos:pypy-3.10	macos:pypy-3.11
macOS (aarch64) 🍏	macos-arm:3.9	macos-arm:3.10	macos-arm:3.11	macos-arm:3.12	macos-arm:3.13	macos:pypy-3.10	macos:pypy-3.11
Windows Server 🪟	windows:3.9	windows:3.10	windows:3.11	windows:3.12		windows:pypy-3.10	windows:pypy-3.11
Windows Server 🪟 + MSYS 🟪
Windows Server 🪟 + MinGW32 ⬛
Windows Server 🪟 + MinGW64 🟦				mingw64:3.12
Windows Server 🪟 + Clang32 🟫
Windows Server 🪟 + Clang64 🟧
Windows Server 🪟 + UCRT64 🟨				ucrt64:3.12

Parameter Summary

Goto input parameters

Parameter Name	Required	Type	Default
ubuntu_image_version	no	string	`'24.04'`
name	no	string	`''`
package_namespace	no	string	`''`
package_name	no	string	`''`
python_version	no	string	`'3.13'`
python_version_list	no	string	`'3.9 3.10 3.11 3.12 3.13'`
system_list	no	string	`'ubuntu windows macos macos-arm mingw64 ucrt64'`
include_list	no	string	`''`
exclude_list	no	string	`'windows-arm:3.9 windows-arm:3.10'`
disable_list	no	string	`'windows-arm:pypy-3.10 windows-arm:pypy-3.11'`
ubuntu_image	no	string	`'ubuntu-24.04'`
ubuntu_arm_image	no	string	`'ubuntu-24.04-arm'`
windows_image	no	string	`'windows-2025'`
windows_arm_image	no	string	`'windows-11-arm'`
macos_intel_image	no	string	`'macos-13'`
macos_arm_image	no	string	`'macos-15'`
pipeline-delay	no	number	`0`

Goto secrets

This job template needs no secrets.

Goto output parameters

Result Name	Type	Description
python_version	string
python_jobs	string
artifact_names	string
params	string	deprecated

Input Parameters

ubuntu_image_version

Type:: string
Required:: no
Default Value:: '24.04'
Possible Values:: See actions/runner-images - Available Images for available Ubuntu image versions.
Description:: Version of the Ubuntu image used to run this job.

Note

Unfortunately, GitHub Actions has only a limited set of functions, thus, the usual Ubuntu image name like 'ubuntu-24.04' can’t be split into image name and image version.

name

Type:: string
Required:: no
Default Value:: ''
Possible Values:: Any valid artifact name.
Description:: Prefix used to generate artifact names. Usually, the name of the Python package.
In case this parameter is n empty string, the artifact prefix is derived from package_name if the package is a simple Python package, or from package_namespace and package_name, if the package is a Python namespace package.

package_namespace

Type:

string

Required:

no

Default Value:

''

Possible Values:

Any valid Python namespace.

Description:

In case the package is a Python namespace package, the name of the library’s or package’s namespace needs to be specified using this parameter.
In case of a simple Python package, this parameter must be specified as an empty string (''), which is the default.
This parameter is used to derive name, if it’s an empty string.

Example:

Example Instantiation

name: Pipeline

jobs:
  ConfigParams:
    uses: pyTooling/Actions/.github/workflows/Parameters.yml@r5
    with:
      package_namespace: myFramework
      package_name:      Extension

Example Directory Structure

📂ProjectRoot/
  📂myFramework/
    📂Extension/
      📦SubPackage/
        🐍__init__.py
        🐍SubModuleA.py
      🐍__init__.py
      🐍ModuleB.py

package_name

Type:

string

Required:

no

Default Value:

''

Possible Values:

Any valid Python package name.

Description:

In case of a simple Python package, this package’s name is specified using this parameter.
In case the package is a Python namespace package, the parameter package_namespace must be specified, too.
This parameter is used to derive name, if it’s an empty string.

Example:

Example Instantiation

name: Pipeline

jobs:
  ConfigParams:
    uses: pyTooling/Actions/.github/workflows/Parameters.yml@r5
    with:
      package_name: myPackage

Example Directory Structure

📂ProjectRoot/
  📂myFramework/
    📦SubPackage/
      🐍__init__.py
      🐍SubModuleA.py
    🐍__init__.py
    🐍ModuleB.py

python_version

Type:: string
Required:: no
Default Value:: '3.13'
Possible Values:: Any valid Python version conforming to the pattern <major>.<minor> or pypy-<major>.<minor>.
See actions/python-versions - available Python versions and actions/setup-python - configurable Python versions.
Description:: Python version used as default for other jobs requiring a single Python version.
In case python_version_list is an empty string, this version is used to populate the version list.

python_version_list

Type:

string

Required:

no

Default Value:

'3.9 3.10 3.11 3.12 3.13'

Possible Values:

A space separated list of valid Python versions conforming to the pattern <major>.<minor> or pypy-<major>.<minor>.
See actions/python-versions - available Python versions and actions/setup-python - configurable Python versions.

Description:

The list of space-separated Python versions used for Python variation testing.

Possible values

3.8, 3.9, 3.10 , 3.11, 3.12, 3.13, 3.14
pypy-3.7, pypy-3.8, pypy-3.9, pypy-3.10, pypy-3.11

Icon	Version	Maintained until	Comments
⚫	3.8	2024.10	outdated
🔴	3.9	2025.10
🟠	3.10	2026.10
🟡	3.11	2027.10
🟢	3.12	2028.10
🟢	3.13	2029.10	latest CPython
🟣	3.14	2030.10	Python 3.14 alpha, beta (or RC) will be used.
⟲⚫	pypy-3.7	????.??
⟲⚫	pypy-3.8	????.??
⟲🔴	pypy-3.9	????.??
⟲🟠	pypy-3.10	????.??
⟲🟡	pypy-3.11	????.??	latest PyPy

system_list

Type:

string

Required:

no

Default Value:

'ubuntu windows macos macos-arm mingw64 ucrt64'

Possible Values:

A space separated list of system names.

Description:

The list of space-separated systems used for application testing.

Possible values

Native systems: ubuntu, windows, macos
MSYS2: msys, mingw32, mingw64, clang32, clang64, ucrt64

Icon	System	Used version	Comments
🪟	Windows	Windows Server 2025 (latest)
🐧	Ubuntu	Ubuntu 24.04 (LTS) (latest)
🍎	macOS	macOS Ventura 13 (latest)	While this marked latest, macOS Ventura 13 is already provided.
🍏	macOS-arm	macOS Sonoma 14 (latest)	While this marked latest, macOS Ventura 13 is already provided.
🟪	MSYS
⬛	MinGW32
🟦	MinGW64
🟫	Clang32
🟧	Clang64
🟨	UCRT64

Source: Images provided by GitHub

include_list

Type:

string

Required:

no

Default Value:

''

Possible Values:

A space separated list of <system>:<python_version> tuples.

Description:

List of space-separated <system>:<python_version> tuples to be included into the list of test variants.

Example:

jobs:
  ConfigParams:
    uses: pyTooling/Actions/.github/workflows/Parameters.yml@r5
    with:
      package_name: myPackage
      include_list: "ubuntu:3.11 macos:3.11"

exclude_list

Type:

string

Required:

no

Default Value:

'windows-arm:3.9 windows-arm:3.10'

Possible Values:

A space separated list of <system>:<python_version> tuples.

Description:

List of space-separated <system>:<python_version> tuples to be excluded from the list of test variants.

Example:

jobs:
  ConfigParams:
    uses: pyTooling/Actions/.github/workflows/Parameters.yml@r5
    with:
      package_name: myPackage
      exclude_list: "windows:pypy-3.8 windows:pypy-3.9"

disable_list

Type:

string

Required:

no

Default Value:

'windows-arm:pypy-3.10 windows-arm:pypy-3.11'

Possible Values:

A space separated list of <system>:<python_version> tuples.

Description:

List of space-separated <system>:<python_version> tuples to be temporarily disabled from the list of test variants.
Each disabled item creates a warning in the workflow log:

Example:

jobs:
  ConfigParams:
    uses: pyTooling/Actions/.github/workflows/Parameters.yml@r5
    with:
      package_name: myPackage
      disable_list: "windows:3.10 windows:3.11"

../../_images/GH_Workflow_DisabledJobsWarnings.png

ubuntu_image

Type:: string
Required:: no
Default Value:: 'ubuntu-24.04'
Possible Values:: See actions/runner-images - Available Images
Description:: Name of the Ubuntu x86-64 image and version used to run a Ubuntu jobs when selected via system_list.

ubuntu_arm_image

Type:: string
Required:: no
Default Value:: 'ubuntu-24.04-arm'
Possible Values:: See actions/partner-runner-images - Available Images
Description:: Name of the Ubuntu aarch64 image and version used to run a Ubuntu ARM jobs when selected via system_list.

windows_image

Type:: string
Required:: no
Default Value:: 'windows-2025'
Possible Values:: See actions/runner-images - Available Images
Description:: Name of the Windows Server x86-64 image and version used to run a Widnows jobs when selected via system_list.

windows_arm_image

Type:: string
Required:: no
Default Value:: 'windows-11-arm'
Possible Values:: See actions/partner-runner-images - Available Images
Description:: Name of the Windows aarch64 image and version used to run a Windows ARM jobs when selected via system_list.

macos_intel_image

Type:: string
Required:: no
Default Value:: 'macos-13'
Possible Values:: See actions/runner-images - Available Images
Description:: Name of the macOS x86-64 image and version used to run a macOS Intel jobs when selected via system_list.

macos_arm_image

Type:: string
Required:: no
Default Value:: 'macos-15'
Possible Values:: See actions/runner-images - Available Images
Description:: Name of the macOS aarch64 image and version used to run a macOS ARM jobs when selected via system_list.

pipeline-delay

Type:: number
Required:: no
Default Value:: 0
Possible Values:: Any integer number.
Description:: Slow down this job, to delay the startup of the GitHub Action pipline.

Secrets

This job template needs no secrets.

Outputs

python_version

Type:

string

Default Value:

'3.13'

Possible Values:

Any valid Python version conforming to the pattern <major>.<minor> or pypy-<major>.<minor>.

Description:

Returns

A single string parameter representing the default Python version that should be used across multiple jobs in the same pipeline.

Such a parameter is needed as a workaround, because GitHub Actions doesn’t support proper handling of global pipeline variables. Thus, this job is used to compute an output parameter that can be reused in other jobs.

Example:

jobs:
  Params:
    uses: pyTooling/Actions/.github/workflows/Parameters.yml@r5
    with:
      name: pyTooling

  CodeCoverage:
    uses: pyTooling/Actions/.github/workflows/CoverageCollection.yml@r5
    needs:
      - Params
    with:
      python_version: ${{ needs.Params.outputs.python_version }}

python_jobs

Type:

string (JSON)

Description:

Returns a JSON array of job descriptions, wherein each job description is a dictionary providing the following key-value pairs:

sysicon - icon to display
system - name of the system
runs-on - virtual machine image and base operating system
runtime - name of the runtime environment if not running natively on the VM image
shell - name of the shell
pyicon - icon for CPython or pypy
python - Python version
envname - full name of the selected environment

Example:

jobs:
  Params:
    uses: pyTooling/Actions/.github/workflows/Parameters.yml@r5
    with:
      name: pyDummy

  UnitTesting:
    uses: pyTooling/Actions/.github/workflows/UnitTesting.yml@r5
    needs:
      - Params
    with:
      jobs: ${{ needs.Params.outputs.python_jobs }}

Usage:

The generated JSON array can be unpacked using the fromJson(...) function in a job’s matrix strategy:matrix:include like this:

name: Unit Testing (Matrix)

on:
  workflow_call:
    inputs:
      jobs:
        required: true
        type: string

jobs:
  UnitTesting:
    name: ${{ matrix.sysicon }} ${{ matrix.pyicon }} Unit Tests using Python ${{ matrix.python }}
    runs-on: ${{ matrix.runs-on }}
    strategy:
      matrix:
        include: ${{ fromJson(inputs.jobs) }}
    defaults:
      run:
        shell: ${{ matrix.shell }}
    steps:
      - name: 🐍 Setup Python ${{ matrix.python }}
        if: matrix.system != 'msys2'
        uses: actions/setup-python@v4
        with:
          python-version: ${{ matrix.python }}

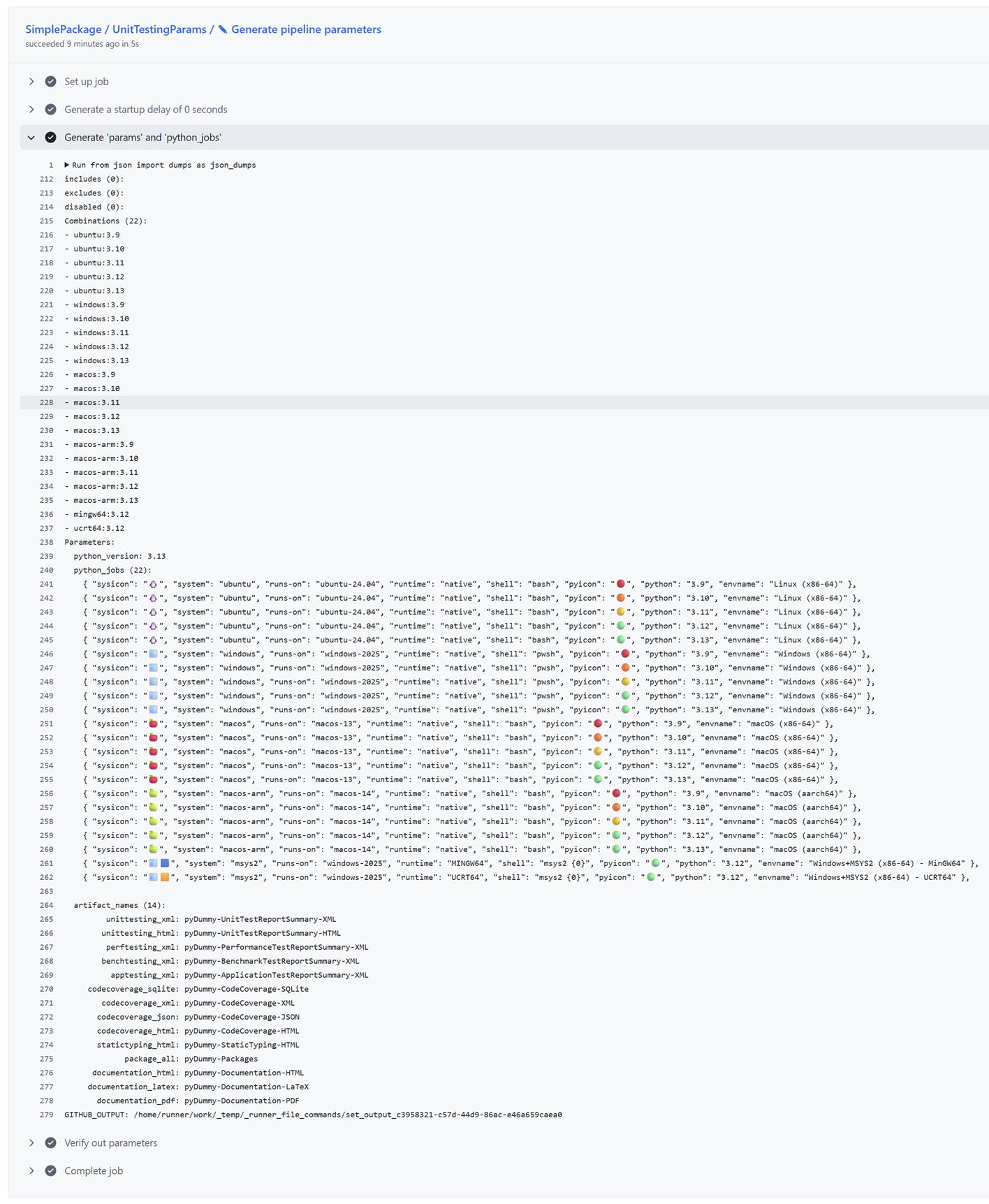

Debugging:

The job prints debugging information like system × Python version × environment combinations as well as the generated JSON array in the job’s log.

[
  {"sysicon": "🐧",  "system": "ubuntu",   "runs-on": "ubuntu-24.04",  "runtime": "native",  "shell": "bash",      "pyicon": "🔴", "python": "3.9",  "envname": "Linux (x86-64)"                 },
  {"sysicon": "🐧",  "system": "ubuntu",   "runs-on": "ubuntu-24.04",  "runtime": "native",  "shell": "bash",      "pyicon": "🟠", "python": "3.10", "envname": "Linux (x86-64)"                 },
  {"sysicon": "🐧",  "system": "ubuntu",   "runs-on": "ubuntu-24.04",  "runtime": "native",  "shell": "bash",      "pyicon": "🟡", "python": "3.11", "envname": "Linux (x86-64)"                 },
  {"sysicon": "🐧",  "system": "ubuntu",   "runs-on": "ubuntu-24.04",  "runtime": "native",  "shell": "bash",      "pyicon": "🟢", "python": "3.12", "envname": "Linux (x86-64)"                 },
  {"sysicon": "🐧",  "system": "ubuntu",   "runs-on": "ubuntu-24.04",  "runtime": "native",  "shell": "bash",      "pyicon": "🟢", "python": "3.13", "envname": "Linux (x86-64)"                 },
  {"sysicon": "🪟",  "system": "windows",   "runs-on": "windows-2025", "runtime": "native",  "shell": "pwsh",      "pyicon": "🔴", "python": "3.9",  "envname": "Windows (x86-64)"               },
  {"sysicon": "🪟",  "system": "windows",   "runs-on": "windows-2025", "runtime": "native",  "shell": "pwsh",      "pyicon": "🟠", "python": "3.10", "envname": "Windows (x86-64)"               },
  {"sysicon": "🪟",  "system": "windows",   "runs-on": "windows-2025", "runtime": "native",  "shell": "pwsh",      "pyicon": "🟡", "python": "3.11", "envname": "Windows (x86-64)"               },
  {"sysicon": "🪟",  "system": "windows",   "runs-on": "windows-2025", "runtime": "native",  "shell": "pwsh",      "pyicon": "🟢", "python": "3.12", "envname": "Windows (x86-64)"               },
  {"sysicon": "🪟",  "system": "windows",   "runs-on": "windows-2025", "runtime": "native",  "shell": "pwsh",      "pyicon": "🟢", "python": "3.13", "envname": "Windows (x86-64)"               },
  {"sysicon": "🍎",  "system": "macos",     "runs-on": "macos-13",     "runtime": "native",  "shell": "bash",      "pyicon": "🔴", "python": "3.9",  "envname": "macOS (x86-64)"                  },
  {"sysicon": "🍎",  "system": "macos",     "runs-on": "macos-13",     "runtime": "native",  "shell": "bash",      "pyicon": "🟠", "python": "3.10", "envname": "macOS (x86-64)"                  },
  {"sysicon": "🍎",  "system": "macos",     "runs-on": "macos-13",     "runtime": "native",  "shell": "bash",      "pyicon": "🟡", "python": "3.11", "envname": "macOS (x86-64)"                  },
  {"sysicon": "🍎",  "system": "macos",     "runs-on": "macos-13",     "runtime": "native",  "shell": "bash",      "pyicon": "🟢", "python": "3.12", "envname": "macOS (x86-64)"                  },
  {"sysicon": "🍎",  "system": "macos",     "runs-on": "macos-13",     "runtime": "native",  "shell": "bash",      "pyicon": "🟢", "python": "3.13", "envname": "macOS (x86-64)"                  },
  {"sysicon": "🍏",  "system": "macos-arm", "runs-on": "macos-15",     "runtime": "native",  "shell": "bash",      "pyicon": "🔴", "python": "3.9",  "envname": "macOS (aarch64)"                 },
  {"sysicon": "🍏",  "system": "macos-arm", "runs-on": "macos-15",     "runtime": "native",  "shell": "bash",      "pyicon": "🟠", "python": "3.10", "envname": "macOS (aarch64)"                 },
  {"sysicon": "🍏",  "system": "macos-arm", "runs-on": "macos-15",     "runtime": "native",  "shell": "bash",      "pyicon": "🟡", "python": "3.11", "envname": "macOS (aarch64)"                 },
  {"sysicon": "🍏",  "system": "macos-arm", "runs-on": "macos-15",     "runtime": "native",  "shell": "bash",      "pyicon": "🟢", "python": "3.12", "envname": "macOS (aarch64)"                 },
  {"sysicon": "🍏",  "system": "macos-arm", "runs-on": "macos-15",     "runtime": "native",  "shell": "bash",      "pyicon": "🟢", "python": "3.13", "envname": "macOS (aarch64)"                 },
  {"sysicon": "🪟🟦", "system": "msys2",    "runs-on": "windows-2025", "runtime": "MINGW64", "shell": "msys2 {0}", "pyicon": "🟢", "python": "3.12", "envname": "Windows+MSYS2 (x86-64) - MinGW64"},
  {"sysicon": "🪟🟨", "system": "msys2",    "runs-on": "windows-2025", "runtime": "UCRT64",  "shell": "msys2 {0}", "pyicon": "🟢", "python": "3.12", "envname": "Windows+MSYS2 (x86-64) - UCRT64" }
]

artifact_names

Type:

string (JSON)

Description:

Returns a JSON dictionary of artifact names sharing a common prefix (see name).
As artifacts are handed from jo to job, a consistent nameing scheme is advised to avoid duplications and naming artifacts by hand. This technique solves again the problem of global variables in GitHub Action YAMl files and the need for assigning the same value (here artifact name) to multiple jobs templates.

The supported artifacts are:

unittesting_xml - UnitTesting XML summary report
unittesting_html - UnitTesting HTML summary report
perftesting_xml - PerformanceTesting XML summary report
benchtesting_xml - Benchmarking XML summary report
apptesting_xml - ApplicationTesting XML summary report
codecoverage_sqlite - Code Coverage internal database (SQLite)
codecoverage_xml - Code Coverage XML report
codecoverage_json - Code Coverage JSON report
codecoverage_html - Code Coverage HTML report
statictyping_html - Static Type Checking HTML report
package_all - Packaged Python project (multiple formats)
documentation_html - Documentation in HTML format
documentation_latex - Documentation in LaTeX format
documentation_pdf - Documentation in PDF format

Example:

jobs:
  Params:
    uses: pyTooling/Actions/.github/workflows/Parameters.yml@r5
    with:
      name: pyTooling

  Coverage:
    uses: pyTooling/Actions/.github/workflows/UnitTesting.yml@r5
    needs:
      - Params
    with:
      unittest_xml_artifact: ${{ fromJson(needs.Params.outputs.artifact_names).unittesting_xml }}

params

Attention

params is deprecated.

Type:

string (JSON)

Description:

Returns a JSON dictionary of artifact names.
Use artifact_names as a more powerful replacement.

Replacements:

params['unittesting'] → artifact_names['unittesting_xml']
params['coverage'] → artifact_names['codecoverage_xml']
params['typing'] → artifact_names['statictyping_html']
params['package'] → artifact_names['package_all']
params['doc'] → artifact_names['documentation_html']

Optimizations

This template offers no optimizations (reduced job runtime).

Nontheless, the generated output python_jobs is influenced by many input parameters generating \(N^2\) many Python job combinations, which in turn will influence the overall pipeline runtime and how many jobs (parallel VMs) are needed to execute the matrix.

Hint

Some VM images (macOS, Windows) have parallelism limitations and run slower then Ubuntu-based jobs. Additionally, environments like MSYS2 require an additional setup time increasing a jobs runtime segnificantly.
